Manual loading of the rotor on the bearing pedestals, closing of counter bearings and coupling the drive system (belt or universal joint shaft)
Closing of protection device and start of the automatic measuring sequence.

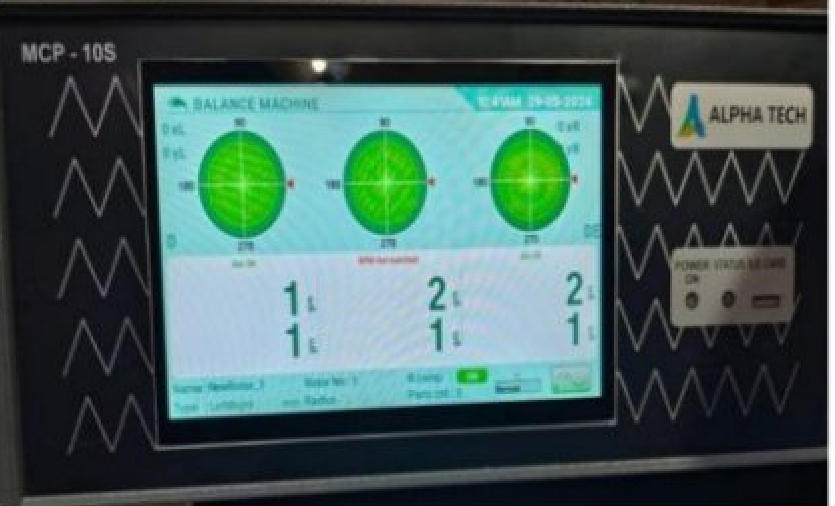

Acceleration, determination and display of unbalance on the measuring instrument, deceleration. The measured unbalance values are retained after the measuring run is completed.
Opening of the protection device, manual unbalance correction (if necessary)
Verification of residual unbalance (measuring unit indicates whether the required tolerance has been reached) and unloading of the rotor from the machine.
Specification | Units | Model → | DPH-0.2 | DPH-0.4 | DPH-1.0 | DPH-3.0 | DPH-10.0 | DPH-15.0 | DPH-30.0 | Action |
---|---|---|---|---|---|---|---|---|---|---|
Maximum weight of symmetrical rotor | Kg | 25 | 50 | 160 | 400 | 950 | 3000 | 4500 | ||
Maximum diameter over Bed Rail | mm | 400 | 650 | 850 | 1100 | 1600 | 1500 | 1500 | ||
Extended Facility | - | - | - | - | - | 2000 | 2000 | |||
Journal diameter range | mm | 5-40 | 5-50 | 10-70 | 10-100 | 15-120 | 25-160 | 25-160 | ||
Extended Facility up to | 80 | 100 | 140 | 200 | 250 | 300 | 300 | |||
Standard Bed Rail Length | mm | 600 | 600 | 1200 | 1500 | 1800 | 2500 | 2500 | ||
Extension Bed Rail | - | - | 500 | 500 | 600 | 600 | 1200 | |||
Distance between Pedestals (Minimum) | mm | 20 | 20 | 25 | 25 | 30 | 50 | 140 | ||
Drive power | Kw | 0.37 | 0.75 | 1.5 | 2.2 | 5.5 | 11 | 15 |
